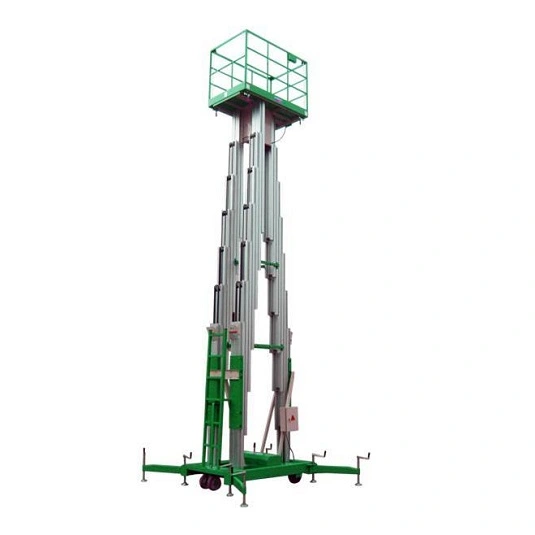

Details of 10-14m Triple mast lifts

Name	Model	Platform height	Platform capacity	Platform Size	Power source	Total weight	Dimension(LWH)
Three mast	FORU12-3	12m	200kg	1.57*0.9m	2.2kw/220V	1050kg	1.91.11.98m
	FORU14-3	14m	200kg	1.57*0.9m	2.2kw/220V	1120kg	1.91.22.3m
	FORU16-3	16m	200kg	1.57*0.9m	2.2kw/220V/380V	1200kg	2.01.22.7m
Standard voltage :220V 50HZ 1 phase , can be customized according to different country.
Optional configuration: battery +AC power for platform raise and down assistant move system
Lifting height above 18m,please contact us for more details.

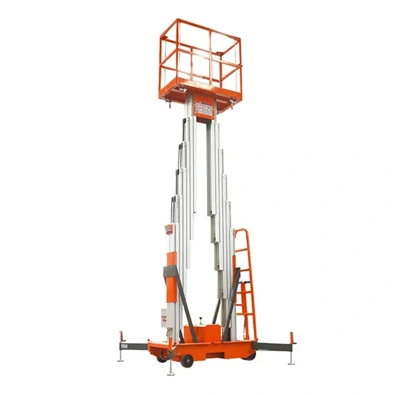

8m, 10m, 12m, Hydraulic Ladder Mast Electric Man Aluminum Alloy Lift Platform

Advantages of 10-14m Triple Mast Lifts

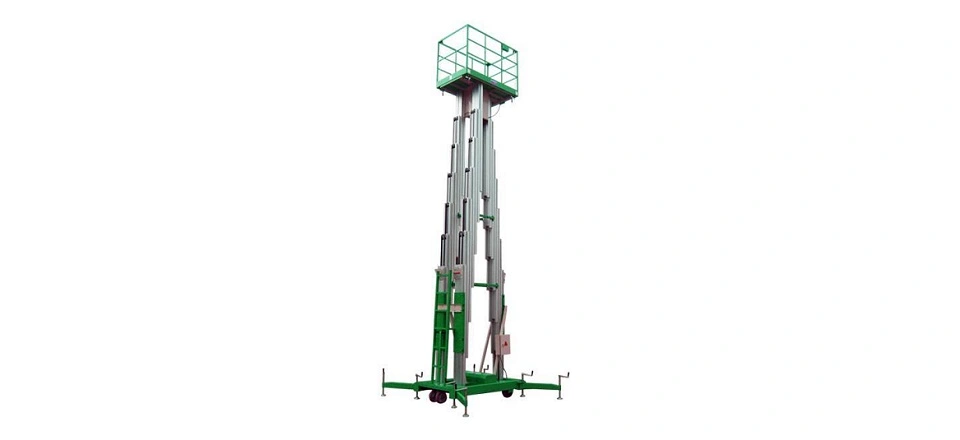

Triple Mast Lifts 960

This series of products subject structure using high-strength aluminum alloy material.
The equipment takes up small spaces , light-weight, mobile flexible, looks beautiful.
Electrical control or manual pump control when the electricity is not available.
Two control panel: one is hand button, which may be placed in any position on the table rail for the convenience of operation. The other is fixed on the electric-control box, which is supported with emergency stop button for prevention of any accident.
Easily pushed around to the designated sites.
Low energy consumption, no pollution, do no damage to the grounds.
The power sources can be 110V, 220V, 380V, AC power, DC power, depending on the local power sources
