Mobile Loading Ramp

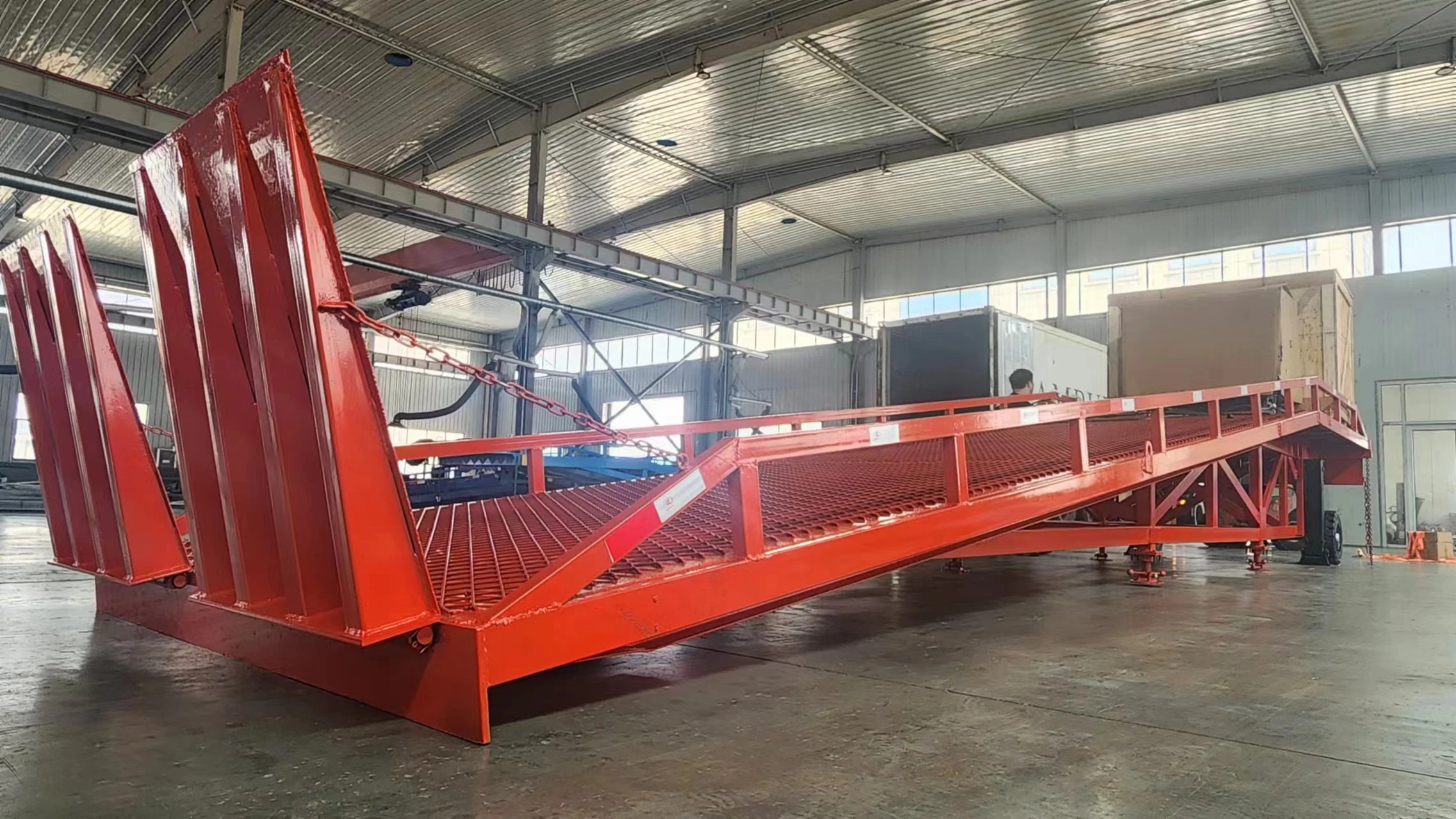

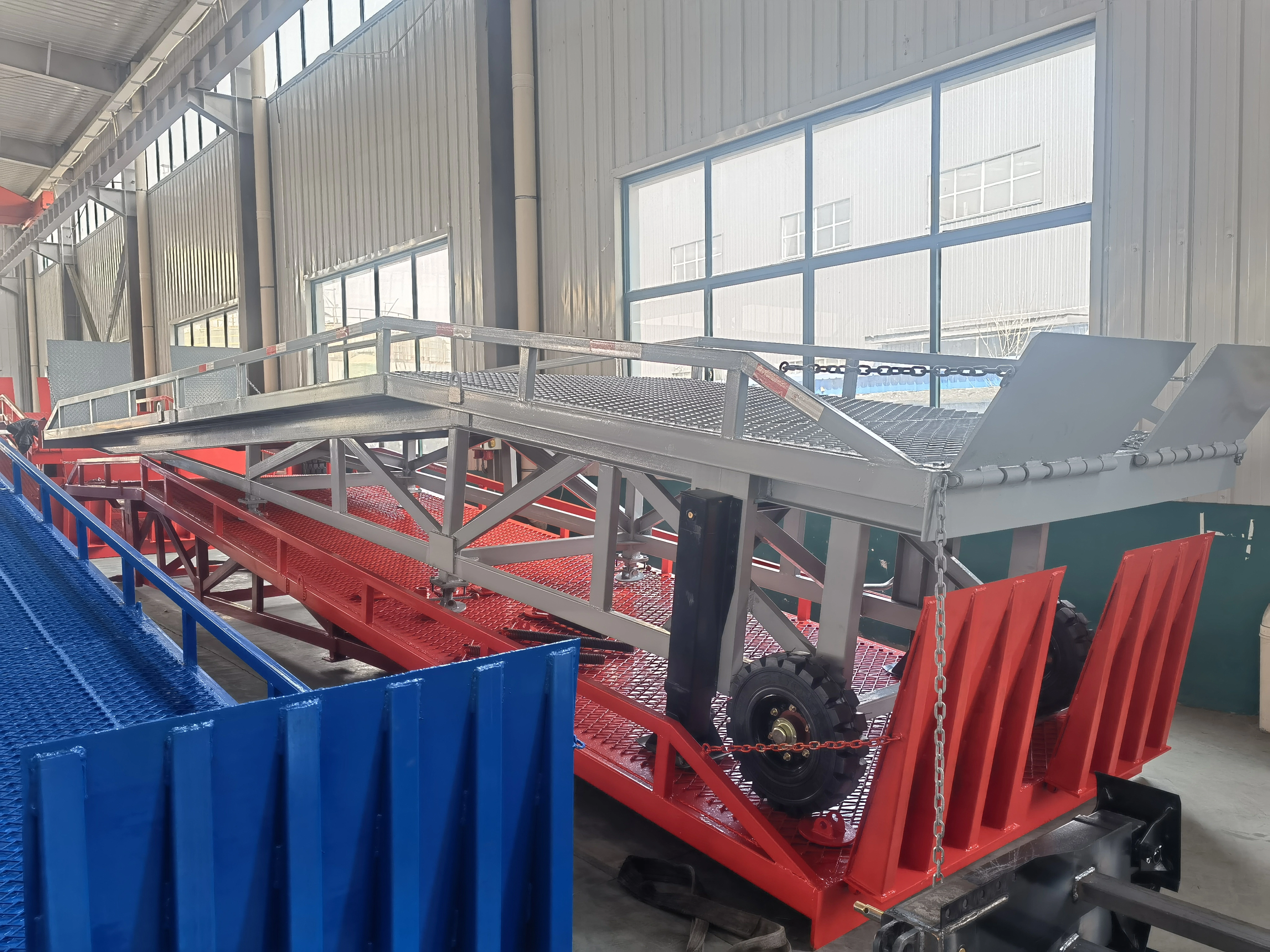

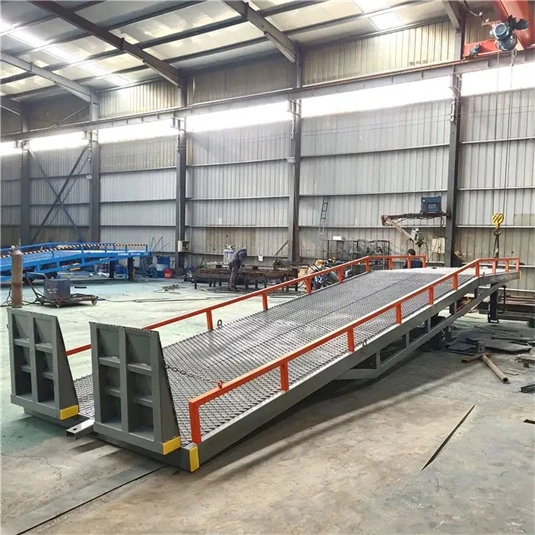

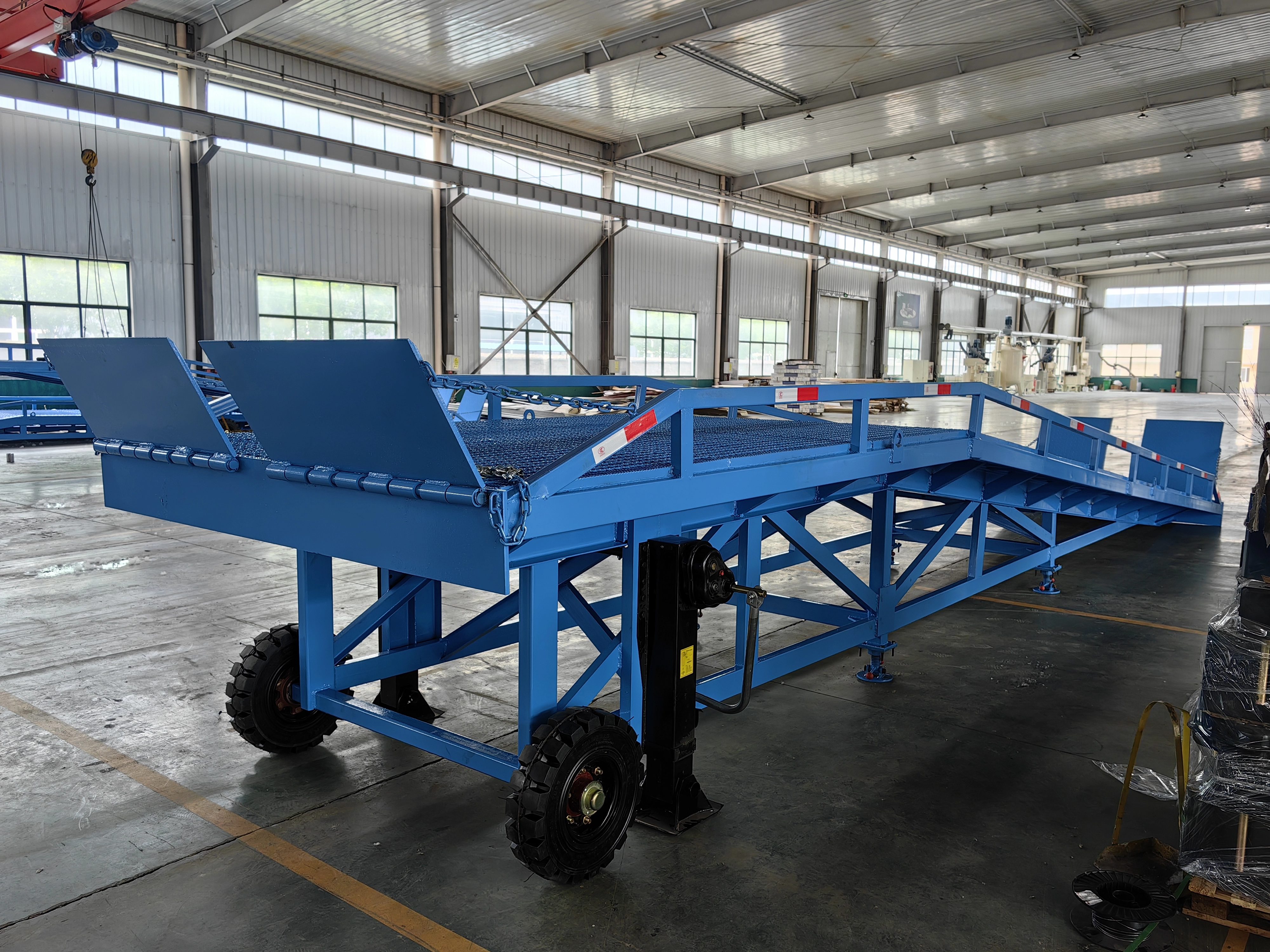

Mobile Dock Ramp Lift adopt strong steel, and the slope is small and it is convenient to carry the vehicle up and down. The mobile boarding bridge is powered by a manual hydraulic pump, and the height adjustment can be easily achieved without external power supply. The front end is equipped with adjustable supporting legs, which is more firm and safer when loading and unloading, and has a large load capacity. The folding transition plate at the rear of the mobile docking bridge and the forklift hook can easily hook the mobile docking bridge. The bridge body frame is made of high-strength manganese steel and a unique welding process, which has high strength and large bearing capacity.

Details of Mobile Loading Ramp


Model name

Load Capacity

Platform Size

Lip

Travel Upper

Travel Lower

Power

DCQY6

6 ton

2000*2500mm

400mm

300mm

200mm

0.75KW

DCQY8

8 ton

2000*2500mm

400mm

300mm

200mm

0.75KW

DCQY10

10 ton

2000*2500mm

400mm

300mm

200mm

0.75KW

DCQY12

12 ton

2000*2500mm

400mm

300mm

200mm

0.75KW





Advantages of Mobile Loading Ramp


6 Foot Loading Ramps

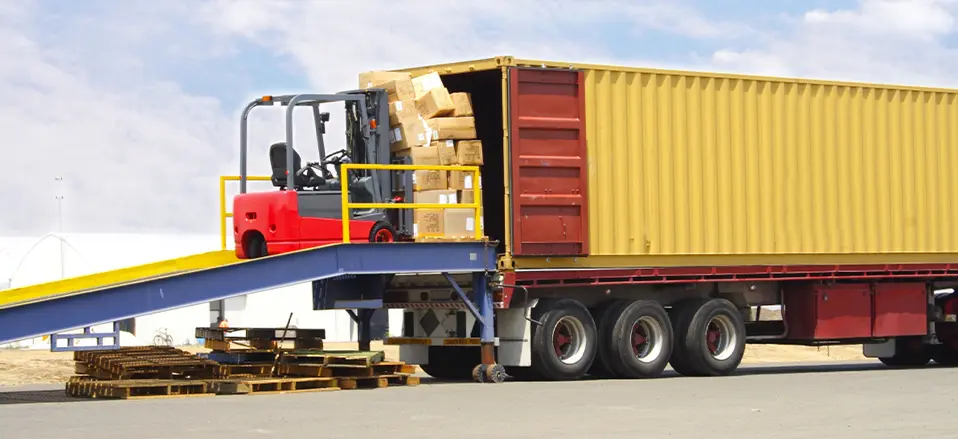

Mobile Dock Loading Ramp Leveler is used in conjunction with the forklift cargo loading and unloading auxiliary equipment, according to the height of the car compartment height adjustment, the forklift can be directly through the equipment into the interior of the cargo bulk cargo handling, only single operation, you can To achieve rapid loading and unloading of goods. It allows enterprises to reduce a lot of labor, improve work efficiency, access to greater economic benefits.
