Details of Home Lift With Cabin

Model	FUCB2510	FUCB2515	FUCB2520	FUCB2525	FU CB2530	FUCB 2535	FUCB2540	FUCB2550	FUCB2560
Platform Size(mm)	1430*1000	1430*1000	1430*1000	1430*1000	1430*1000	1430*1000	1430*1000	1430*1000	1430*1000
Lift Capacity(KG)	250	250	250	250	250	250	250	250	250
Lifting Height(mm)	1000	1500	2000	2500.0	3000	3500	4000	5000	6000
Overall Size(mm)	20001430 1300	25001430 1300	30001430 1000	35001430 100	40001430 1000	46001430 1000	51001430 1000	61001430 1000	71001430 1000
Groos Weight with Package(KG)	450	550	700	850	900	1000	1050	1200	1300
Net Weight(KG)	350	450	550	700	780	850	880	1000	1100
Lifting Speed(mm/s)	66
Control Voltage(V)	24
Motor Power(Kw)	2.2
Imput Power(V)	As Per Customer Local Standard
Package Size(mm)	22001600 1600	27001600 1600	32001600 1600	37001600 1600	42001600 1600	48001600 1600	53001600 1600	63001600 1600	73001600 1600
Surface Treatment	Plastic Spraying
Mast Material	Aluminum Alloy
Warranty	24Months
Working Temperature	-10°~60°( under low temperature can choose antifreeze hydraulic oil)

The Steps to Installing a Container Loading Ramp

Installation, after-sales service and technical support：

Complete accompanying documents including installation manual shall be delivered together with the elevator equipment in the container;
Remote technical support can be obtained through e-mail, WeChat, video, etc;
If necessary, technicians will be dispatched “paid” to the job site to help you according to your needs.

Cabin Elevator Home Lift Advantages

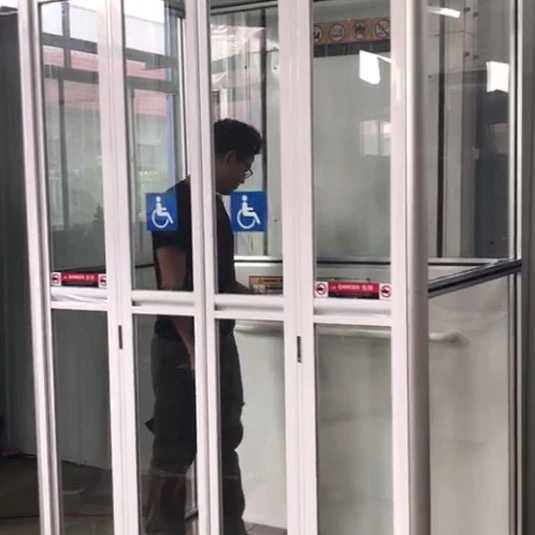

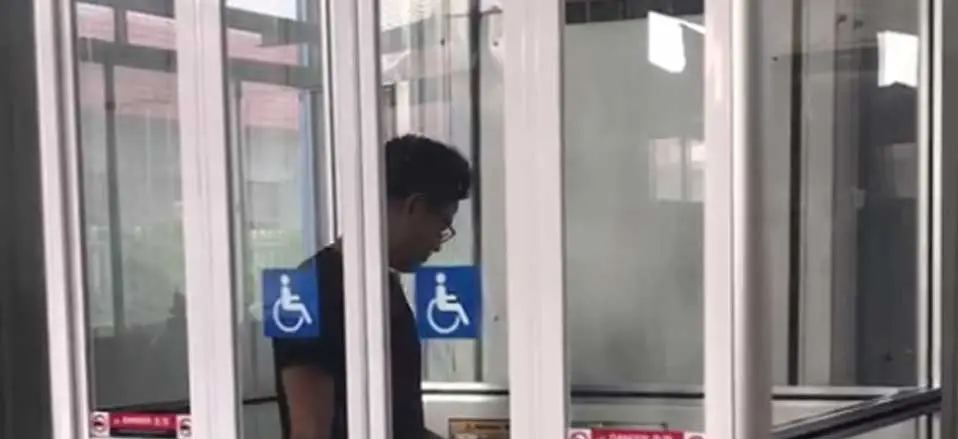

External Disabled Lift

Our hydraulic home elevator is widely used in customers personal house and villa, it is quiet and stable during lifting and lowering. UPS backup power and manual lower valve make sure that if power failure, the lift could reach to the ground. The light curtain and folding door protect people dropping from the cabin, and the touch sensor at the bottom of home lift will stop the lift immediately when it touches any obstacle.
