Shandong Foru Tech Co., Ltd.

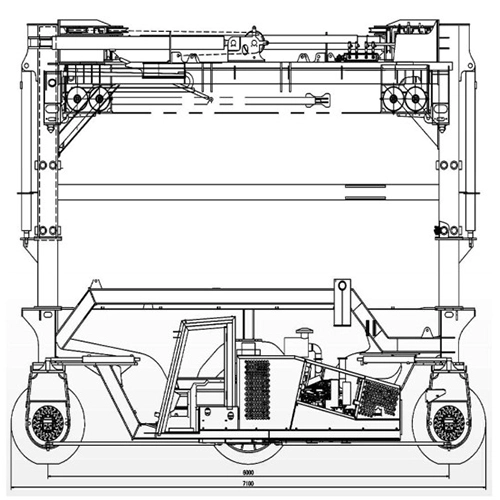

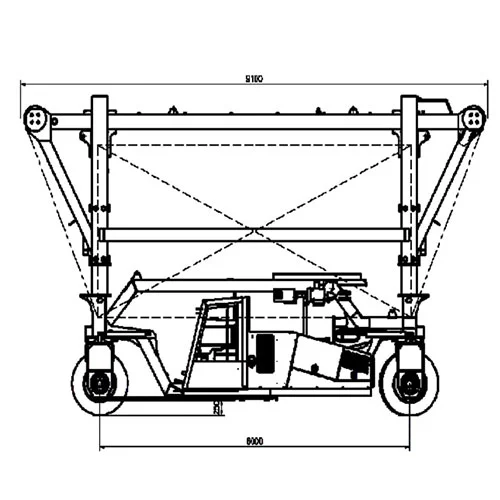

Standard 35T Straddle Carrier

Technical parametersHKY3532B5HKY3532A
Lifting Capacity35T35T
Overall Dimensions (L*W*H)9100*5100*54507100*5100*6050mm
Effective Internal Width3200mm3200mm
Tread (on tire)6000mm6000mm
Secondary Lifting HeightN/A1550mm
Minimum Ground Clearance240mm240mm
WeightApprox. 18T (excluding spreader)Approx. 20T (excluding spreader)
Engine (off-highway national III standard)Cummins 97KW/Weichai 103KWCummins 97KW/Weichai 103KW
Traveling pump (closed travel)Heidecker/Linde/DanfossHeidecker/Linde/Danfoss
Travel speed (no load)7km/h7km/h
Travel speed (heavy duty)5km/h5km/h
Turning radius7000mm7000mm
Climbing capacity (empty/full)6%/3%6%/3%
Maneuvering formSteering wheel (optional remote control)Steering wheel (optional remote control)
TiresTwo each of 1100 solid tires + 1300 solid tiresTwo each of 1100 solid tires + 1300 solid tires
Lifting toolChain + LockAutomatic spreader
