Classification of lifts

With the continuous progress of society, the elevator industry has gradually grown up. With the maturity of technology, the types have gradually increased, which can be roughly divided into several categories.

Fixed hydraulic loading and unloading platform:

Introduction: The fixed scissor-type hydraulic loading and unloading platform does not need to set up cargo platforms, steel frames, etc., and can be lifted and loaded directly from the ground. The professionally designed movable plate can be smoothly overlapped with the car. Forklifts and manual hydraulic forklifts can be easily and smoothly For loading and unloading operations, the torsion spring balance of the board makes the operation easy and free. The platform can be placed in the pit. After the operation, the platform is flat with the ground, does not occupy the ground space, and does not affect the passageway.

Uses: Mainly suitable for loading and unloading of goods between warehouses, workshops, cars and containers

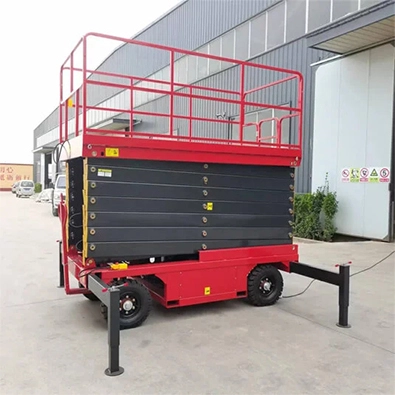

Mobile scissor lift platform

Introduction: This product is divided into: four-wheel mobile, three-wheel self-propelled, two-wheel traction, the main structure of the scissors is made of Shanghai Baosteel manganese steel rectangular tube, the lifting power of the platform is manual or electric, and the lifting power is divided into 220V or 380V power supply. Italian and domestic hydraulic pump stations, the table is equipped with non-slip insulating plastic gussets, easy to replace, and the overall appearance is elegant.

Features: It has the characteristics of flexible movement, stable lifting, convenient operation, large load capacity, etc., and can be used normally during power failure.

Uses: Mainly suitable for various high-altitude workplaces such as factory construction, decoration, engineering installation, industrial and mining workshops, and ship docks.

Fixed scissor lift

Introduction: Fixed electro hydraulic scissor lift (multi-fork) is a special hydraulic lifting platform used for transporting goods between building floors. The hydraulic system of the product is equipped with anti-falling and overloading safety protection devices, and operation buttons can be set on each floor and the working table of the lifting platform to realize multi-point control. The hydraulic freight elevator overcomes the shortage of the limited gravity of the ordinary elevator freight elevator, and can weigh dozens of tons to nearly a hundred tons of goods at most. The maintenance is simple and convenient, and the installation is also more convenient than ordinary freight elevators.

Features: The product has a solid structure, a large load capacity, stable lifting, simple and convenient installation and maintenance, and is an economical and practical ideal cargo transportation equipment for replacing elevators between low floors.

Uses: The product is mainly used in workshops, warehouses and various work shelves to transport goods up and down: three-dimensional garages and underground garages, car lifts, etc.

Guide rail chain type electric lifting platform

Introduction: The hydraulic system of guide rail hydraulic freight elevator and cargo hoist is equipped with anti-falling, interactive interlocking of upper and lower doors, and operation buttons can be set on each floor and the working table of lifting platform to realize multi-point control. It has a variety of forms (single column, double column, four column), stable action, simple and reliable operation, economical and easy transmission of hydraulic and electrical goods. (The specific bearing capacity, the number of raised layers, and the size can be designed and manufactured according to user requirements)

Features: The product has a solid structure, a large load capacity, stable lifting, simple and convenient installation and maintenance, and is an economical and practical ideal cargo transportation equipment for replacing elevators between low floors.

Uses: The guide rail hydraulic lifting platform is a non-scissor hydraulic lifting platform, which is used for the transportation of goods in industrial plants, restaurants, and restaurants above the second floor. Since the minimum height is only 150-300mm, it is most practical for work that cannot excavate pits Places, places where the height of the top floor cannot reach the required occasions and other narrow spaces that are difficult to solve.

According to the installation environment and use requirements of the lifting platform, different optional configurations can be selected to achieve better results:

1. The maximum load capacity is 15 tons, and multi-point control is realized, and the upper and lower floors are interactively interlocked to achieve safe use;

2. The lifting height is high, and the side oil cylinder or double measuring oil cylinder is adopted, which has stable operation, no noise, convenient maintenance and long service life;

3. Manual lowering in power failure, emergency stop button, convenient, fast and practical;

4. The floor door can be penetrated, and the inside and outside of the factory building can be opened to each other, which is convenient and saves space;

5. It is especially suitable for 2-6 storey steel structure factory buildings, which can be used both inside and outside;

6. The pump station adopts imported pump station. If the speed requirement is too high, use imported customized pump station to meet the ideal delivery requirements

7. Oil cylinders and seals use imported parts to solve the problem of unstable oil pressure and oil leakage of parts for customers

Civil construction advantages:

1. There is no need for a machine room above the hoistway, and the top floor can be installed with a height of 3.5 meters or more.

2. The machine room can be located within a radius of 15 meters of the shaft, occupying an area of only 3-4 square meters.

3. The hydraulic elevator is not equipped with a counterweight device, which improves the utilization rate of the hoistway area.

4. The load and load of the hydraulic elevator act directly on the foundation pit through the oil cylinder. The strength of the shaft is low, and the shaft with brick structure or mixed structure is sufficient.

Security and stability advantages:

In addition to the safety devices of traditional traction elevators, hydraulic elevators also have:

1. Relief valve: it can prevent the system pressure from being too high during upward movement

2. Emergency manual valve: When the power fails, the car can be dropped to the nearest floor to open the door in an emergency.

3. Manual pump: When the system fails, the manual pump can be operated to pump out high-pressure oil to make the car rise to the nearest floor;

4. Pipeline rupture valve: When the hydraulic system pipeline ruptures and the car stalls and descends, it can automatically cut off the oil circuit to stop the descent

5. Fuel tank oil temperature protection: When the oil temperature in the fuel tank exceeds the standard setting value, the oil temperature protection device will generate a signal to suspend the use of the elevator, and the elevator can be started only after the oil temperature drops.

Operating cost advantages:

1. Low failure rate: Due to the adoption of advanced hydraulic system and good control method, the failure rate of elevator operation can be reduced to the lowest.

2. Low power consumption: When the hydraulic elevator goes down, it is driven by the pressure generated by its own weight, which greatly saves energy.

Aluminum alloy hydraulic lift

Introduction: The whole is made of high-strength aluminum profiles, and the power is driven by a hydraulic pump station to drive the chain transmission, which can be operated up and down, making high-altitude operations more convenient and quick. The main products are divided into single-column aluminum alloy, double-column aluminum alloy, three-column aluminum alloy lifts, and four-column aluminum alloy lifts.

Features: Made of high-strength and high-quality aluminum alloy, it has the advantages of beautiful appearance, small size, light weight, stable lifting, safety and reliability. Its light appearance can exert the highest lifting capacity in a very small space. The column lifting system has the characteristics of large load capacity, strong stability, large platform area, and convenient implementation.

Uses: Widely used in hotels, station waiting rooms, airport terminals, theaters, exhibition halls, gymnasiums and other places. It is the best safe partner for high-altitude operations for maintenance of machinery, paint decoration, replacement of lamps, electrical appliances, cleaning and maintenance, etc.

Self-propelled telescopic table lift

ZSJY series self-propelled hydraulic lifting platform is a hydraulic lifting equipment with automatic walking and automatic lifting. It has the characteristics of small size, high degree of automation, flexible and convenient operation, safety and reliability, simple operation and beautiful appearance.

The DC electric drive wheel has a self-locking function, the brake is divided when the drive wheel is working, and it is automatically locked when it is not working.

The self-propelled lifting platform consists of the following parts:

1. Scissor-type main structure, telescopic workbench, and safety guardrail.

2. Self-propelled DC electric drive wheels.

3. Hydraulic system: pump station, oil cylinder, etc.

4. DC power supply and charger.

5. Electric control box and operation box.

Vehicle-mounted scissor hydraulic lift platform

This product is an aerial work equipment refitted from an aerial work platform and a battery car or a car. The platform uses DC power supply or vehicle power to drive the platform to lift. The walking function of the vehicle can make the aerial work platform have better flexibility and mobility. The operating efficiency is higher, and it can adapt to a wider range of high-altitude operation equipment with greater mobility.

Fixed hydraulic boarding bridge

Application of fixed hydraulic boarding bridge:

The products can be widely used in docks, platforms, warehouses and other places according to the different needs of users. Special designs can be made in terms of dimensions, load bearing, etc. The fixed boarding bridge is installed on the side of the cargo platform, flush with the ground and sides of the cargo platform. The bridge deck of the fixed boarding bridge can be tilted up and down, and its outer end can be higher or lower than the plane of the cargo platform, so that it is as high as the carriage. There is a flap on the top of the bridge plate, which is automatically placed on the edge of the carriage to make the transition between the cargo platform and the carriage smoothly.

Features of fixed hydraulic boarding bridge:

1. For electronic control operation, you only need to press the button, and the adjustment plate will automatically rise. The operation is extremely simple; release the button, and the adjustment plate will drop by its own weight, and the loose-leaf board can be used on the truck.

2. Through the power system, the large oil cylinder raises the entire inclined plate. When it reaches the top position, the small oil cylinder starts to work and smoothly extends the loose-leaf plate. The height adjustment plate is all tightly welded with high-quality high-quality patterned steel plates and profiles from Jinan Jinan Iron and Steel Co., Ltd., which has a long service life. .

3. The hydraulic system adopts high-quality brand products imported from Italy with excellent performance and minimal maintenance.

4. The unique "streamlined" open loose-leaf joint design increases the welding area by more than 3 times compared with other traditional tubular joints, greatly prolonging the service life and facilitating maintenance.

5. There are 3 movable plates on both sides of the adjustment plate, which can effectively avoid the danger of crushing the toes when the adjustment plate is lowered, so as to ensure safety. The front of the base of the fixed boarding bridge adjustment plate is an open design, which is convenient and quick to clean up debris.

6. The uniquely designed "I" steel frame can bear the pressure evenly and reduce the torsion of the frame, which is stronger and more durable than other channel steel structures.

7. During maintenance, maintenance and cleaning, it is safer and more reliable to support the adjustment plate with a strut.

Mobile hydraulic boarding bridge

The mobile hydraulic loading bridge is widely used in cargo platforms without loading and unloading equipment and mobile loading places. It is an auxiliary tool for loading and unloading goods used in conjunction with forklifts. With this device, the forklift can drive directly into the interior of the car for bulk loading. Fast and safe loading and unloading of goods can be realized with only one person operating without power supply. This reduces the labor intensity and becomes

Self-propelled crank arm lifting platform

This product has the characteristics of simple operation, convenient use, large working area, especially the ability to overhang certain obstacles or lift in one place, and can carry out large-scale multi-point lifting operations, which greatly improves work efficiency. This series of lifts is widely used in large-scale lifting operations in industries such as municipal administration, electric power, street lamps, highways, docks, advertisements, gardens, community properties, factories, mines, and enterprise workshops.

Hydraulic lifting stage machinery

It is one of the most widely used equipment in the under-stage equipment of stage machinery. It is equipped with a large number of various types of hydraulic lifting platforms in professional opera houses, dance theaters, and drama theaters. Even in some theaters that mainly use turntables, Lifting platforms or elevators of different specifications are also arranged in the drum turntable.

Many internationally renowned concert halls are equipped with lifting platforms for bands, choirs or large musical instruments.

In some small experimental theaters, in order to realize the change of the stage form, the entire stage is covered with lifting platforms designed according to the modulus.

Stage lift features:

1. The structure of the hydraulic lifting platform is compact and stable, which can adapt to high-frequency continuous operation.

2. The lifting height is stable, which can meet the smooth lifting of large-tonnage cargo.

3. The hydraulic lifting platform is equipped with a hydraulic system for anti-attachment and overload safety protection to ensure safe operation.

4. The rollers, balls, and turntables of the hydraulic lifting platform can be configured arbitrarily, which can meet the requirements of different working conditions.

Auto hydraulic lifting platform

Electric unlocking, easy to operate;

Thin runway design, minimum height 155mm;

The oil cylinder is built into the platform;

Heavy-duty wire rope pulleys or heavy-duty special chains ensure safety;

The inner distance of the runway can be moved to adapt to vehicles with different wheel bases, and it can also be used as a flat platform;

Automatic insurance during ascent ensures vehicle safety;

The runway synchronization device during the ascent ensures that the vehicle has no possibility of overturning;

The alarm setting before descending to the ground ensures the safety of the operator;

Chain or wire rope break protection device;

Hydraulic system pressure loss explosion-proof protection device;

24V safety control voltage;

Aluminum casing with fan motor;

Corrosion-resistant steel oil tank or plastic oil barrel is easy to observe the hydraulic oil capacity and cleanliness;

Electrical, mechanical and hydraulic systems are designed and manufactured in accordance with EU safety certification.
